047109101R
SOFT
DJ-TL-VW11

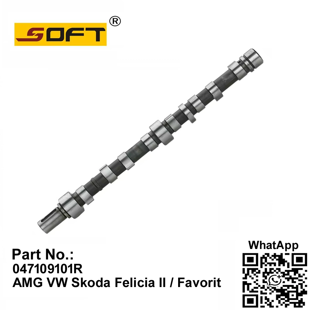

The 047109101R engine camshaft is a replacement component designed for specific 1.3L gasoline engines produced by Volkswagen Group. It is engineered to match the original equipment dimensions and performance characteristics, making it suitable for commercial procurement by parts distributors, fleet maintenance providers, and independent repair workshops. This camshaft operates with a timing chain drive system and is compatible with single overhead camshaft (SOHC) engine configurations. It serves as a direct replacement for the original camshaft with the same part number, eliminating the need for modification during installation.
This camshaft fits 1.3L inline 4-cylinder gasoline engines with model designations AMG and AMJ. These engines feature a single overhead camshaft layout and were widely used in Skoda vehicles during the 1990s.
Skoda Favorit: Produced from 1989 to 1994
Skoda Felicia II: Produced from 1994 to 2001
The 047109101R camshaft is primarily used in commercial vehicle maintenance operations, aftermarket parts distribution, and fleet repair services. It provides a cost-effective solution for replacing worn or damaged camshafts in compatible vehicles, restoring engine performance to original specifications.
Parameter | Original Standard Value | Wear Limit |
Original Part Number | 047 109 101 R | - |
Engine Type | 1.3L Inline 4-cylinder SOHC (AMG/AMJ) | - |
Drive System | Timing chain | - |
Total Length | Approx. 406 mm (40.6 cm) | - |
Main Journal Diameter | 32.000 mm | Roundness error ≤ 0.01 mm |
Camshaft Runout | ≤ 0.03 mm | Replace if exceeds 0.05 mm |
Intake Cam Height | 44.333-44.433 mm | Replace if below 44.200 mm |
Exhaust Cam Height | 43.761-43.861 mm | Replace if below 43.600 mm |
Valve Lift | Intake approx. 8.8 mm, Exhaust approx. 8.6 mm | Power affected if deviation exceeds 0.1 mm |
Intake Valve Opens | 12°-18° BTDC (crankshaft angle) | - |
Intake Valve Closes | 52° ABDC (crankshaft angle) | - |
Exhaust Valve Opens | 48° BBDC (crankshaft angle) | - |
Exhaust Valve Closes | 8° ABDC (crankshaft angle) | - |
Valve Overlap | Approx. 20° | - |
The 047109101R camshaft is manufactured from precision cast iron, a material selected for its durability and wear resistance in engine applications. Each camshaft undergoes CNC machining to ensure dimensional accuracy across all critical surfaces, including cam lobes and bearing journals. Before shipment, every unit passes a series of quality inspections. These include dimensional verification using coordinate measuring machines, runout testing to check concentricity, and surface hardness testing to ensure long service life. All production processes follow original equipment specifications, ensuring consistent fit and performance with compatible engines.
We offer flexible solutions to meet the needs of business buyers and industrial clients. Our inventory management system maintains stable stock levels of the 047109101R camshaft, supporting both small and large volume orders. We provide customizable packaging options, including neutral packaging and branded packaging according to client requirements. Our technical support team is available to assist with compatibility verification and installation guidance. All orders are processed within standard lead times, and we work with multiple logistics providers to offer reliable shipping options worldwide. For bulk commercial procurement, please contact our sales team for detailed pricing and delivery information.
Yes, this camshaft is manufactured to match the original equipment specifications for part number 047109101R. It is designed for direct installation without modification on compatible AMG and AMJ engines.
It is compatible with Skoda Favorit vehicles produced from 1989 to 1994 and Skoda Felicia II vehicles produced from 1994 to 2001, equipped with 1.3L AMG or AMJ SOHC engines.
Each 047109101R camshaft undergoes dimensional inspection, runout testing, and surface hardness verification. All units meet the original equipment dimensional and performance standards before shipment.
Yes, we support bulk orders to meet the needs of parts distributors and fleet maintenance providers. Please contact our sales team for specific pricing and minimum order quantity information based on your required volume.
