5Z0199167C
MAGAL

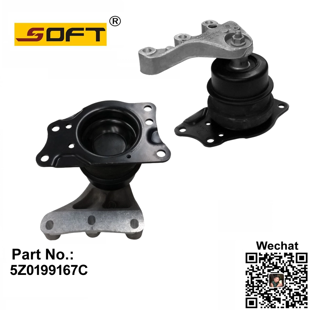

The 5Z0199167C engine mounting is a dedicated replacement component designed for the Volkswagen FOX 1.6L 8V model, which is primarily sold in South American markets including Brazil. This part serves as the right-hand main engine mount (passenger side), responsible for securing the engine to the vehicle chassis and isolating vibrations generated during engine operation. Manufactured to match original equipment (OE) specifications, this engine mounting allows for direct replacement without modification, making it suitable for commercial procurement by repair workshops and automotive parts distributors.
The 5Z0199167C engine mounting features a two-part construction consisting of a cast aluminum bracket and a rubber buffer body. The cast aluminum bracket provides structural rigidity and ensures precise positioning during installation, while the rubber buffer body absorbs and dissipates engine vibrations. This design is calibrated to match the vibration characteristics of the 1.6L 8V single overhead camshaft engine used in the Volkswagen FOX.
This engine mounting is manufactured to the same dimensional and performance specifications as the original factory part (OE part number 5Z0199167C). It maintains the same mounting points, load-bearing capacity, and vibration damping properties as the original component, ensuring compatibility with all specified vehicle models.
The rubber compound used in this engine mounting is formulated to withstand the temperature fluctuations and mechanical stresses encountered in automotive engine compartments. Under normal operating conditions, the component has a service life of 5-8 years or approximately 100,000 kilometers, depending on driving conditions and vehicle usage patterns.
Parameter | Specification |
Part Number | 5Z0199167C |
Product Type | Engine Mounting |
Position | Right-hand main engine mount (passenger side) |
Material | Cast aluminum bracket + rubber buffer |
Compatible Engine | 1.6L 8V single overhead camshaft |
Installation | Direct replacement, no modification required |
Cross Reference | FOX19-92007 |
This engine mounting is specifically designed for the Volkswagen FOX model produced for South American markets. It is compatible with vehicles equipped with the 1.6L 8V single overhead camshaft gasoline engine. Note that the Volkswagen FOX sold in South America has a different vehicle platform and component specifications compared to Volkswagen models available in other regions. This part is not interchangeable with engine mountings used in other Volkswagen models.
Commercial users should consider replacing the engine mounting when the following symptoms are observed:
Noticeable steering wheel and body vibration during idle, which intensifies when the vehicle is in drive gear with the brake applied
Audible "buzzing" resonance noise from the engine compartment
Visible engine movement or impact sensations during acceleration or deceleration
Physical inspection revealing cracks, deformation, or separation between the rubber component and the metal bracket
Failure to replace a worn engine mounting can lead to increased vibration transfer to the passenger compartment, reduced driver comfort, and in severe cases, engine displacement that may damage adjacent components.
The 5Z0199167C engine mounting is suitable for various commercial applications, including automotive repair workshops, independent parts distributors, and fleet maintenance operations. It provides a cost-effective replacement solution for vehicles with worn or failed original engine mountings, helping to maintain vehicle performance and reduce downtime for commercial operations.
No, this engine mounting is only compatible with Volkswagen FOX models equipped with the 1.6L 8V single overhead camshaft engine sold in South American markets. It is not compatible with other engine variants or FOX models sold in other regions.
No, the 5Z0199167C engine mounting is manufactured to OE specifications and allows for direct replacement without any modification to the vehicle.
Under normal operating conditions, the engine mounting has a service life of 5-8 years or approximately 100,000 kilometers. Actual service life may vary depending on driving conditions, vehicle load, and maintenance practices.
No, this part is specifically designed as the right-hand main engine mount. The left-hand engine mount has a different part number and design and is not interchangeable with this component.
