24102832
SOFT
DJ-CVL-27P004

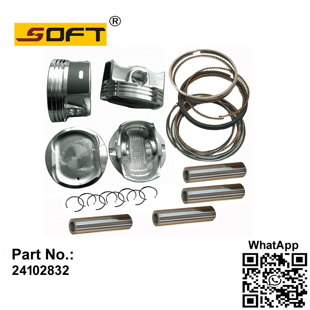

This 24102832 piston set is an engine overhaul component designed for commercial repair shops and automotive parts distributors. It corresponds to the original equipment (OE) part number 24102832 and is manufactured by SOFT as a direct replacement for the specified engine model. The kit features a +0.25mm oversized dimension, with a Dingjia code of DJ-CVL-27P004 for internal inventory management.
This product is classified as a specialized repair component rather than a standard OE replacement. It is engineered to restore engine compression and performance after cylinder wall wear occurs. It is not intended for use in new engine assembly or routine maintenance of unworn engines.
Over extended periods of operation, engine cylinder walls commonly develop wear, ovality, and minor scuffing. These issues prevent standard-sized pistons and rings from forming an effective seal with the cylinder wall, leading to increased oil consumption, reduced cylinder pressure, and decreased power output. Left unaddressed, these conditions can cause further engine damage and premature failure.
This +0.25mm oversized piston set is used in conjunction with cylinder boring and honing processes. During repair, technicians machine the worn cylinder walls to a larger, perfectly round dimension. The oversized pistons and rings are then installed to re-establish proper sealing between the piston and cylinder wall. This repair method extends the service life of the engine block without requiring a full replacement. It is important to note that this kit cannot be installed directly on unprocessed factory cylinders and must only be used after appropriate machining work has been completed.
Component | Quantity | Function |
Oversized Pistons | 4 | Core moving components of the engine, with a diameter 0.25mm larger than standard OE pistons, designed to fit machined cylinders |
Piston Ring Sets | 4 | Each set includes compression rings (for cylinder pressure sealing) and oil control rings (for excess oil removal), matched to the +0.25mm piston size |
Piston Pins | 4 | Connect pistons to connecting rods and transmit power during engine operation |
Piston Pin Retainers | 8 | Installed at both ends of each piston pin to prevent axial movement and disengagement |
This piston set is specifically designed for the Chevrolet Sail 1.4L model equipped with the General Motors LCU 1.4L engine, which was the primary powertrain option for this vehicle during its production run. It is not designed for use with other engine displacements or models.
This component is fully interchangeable with the OE part number 24102832. Commercial buyers should verify the engine model and OE part number of the vehicle before placing an order to ensure proper fitment. Cross-referencing the OE number is the most accurate method to confirm compatibility.
No. This is a specialized oversized repair kit. It can only be installed after the engine cylinder walls have been bored and honed to the corresponding +0.25mm dimension. Direct installation on factory-standard cylinders will result in improper fitment and engine damage.
Standard OE piston sets are designed for use with factory-original cylinder dimensions. This +0.25mm oversized set is intended for engines where the cylinder walls have worn beyond the standard tolerance. It is used in conjunction with cylinder machining to restore proper engine operation.
Yes. The kit contains 4 oversized pistons, 4 matched piston ring sets, 4 piston pins, and 8 piston pin retainers. These components are sufficient to replace all pistons in a 4-cylinder LCU 1.4L engine. Additional gaskets and seals are not included and must be purchased separately.
This piston set is only compatible with the General Motors LCU 1.4L engine as installed in the Chevrolet Sail 1.4L. It is not designed for use with other engine displacements or models.
This 24102832 piston set is available for commercial procurement with a minimum order quantity of 1 unit. FOB China pricing is available upon request. Volume discounts apply for orders of 100 units or more.
We accept multiple payment methods and offer flexible shipping options to meet the needs of commercial operations. For bulk order inquiries, technical support, or additional product information, please contact our sales team via the provided WhatsApp channel.
